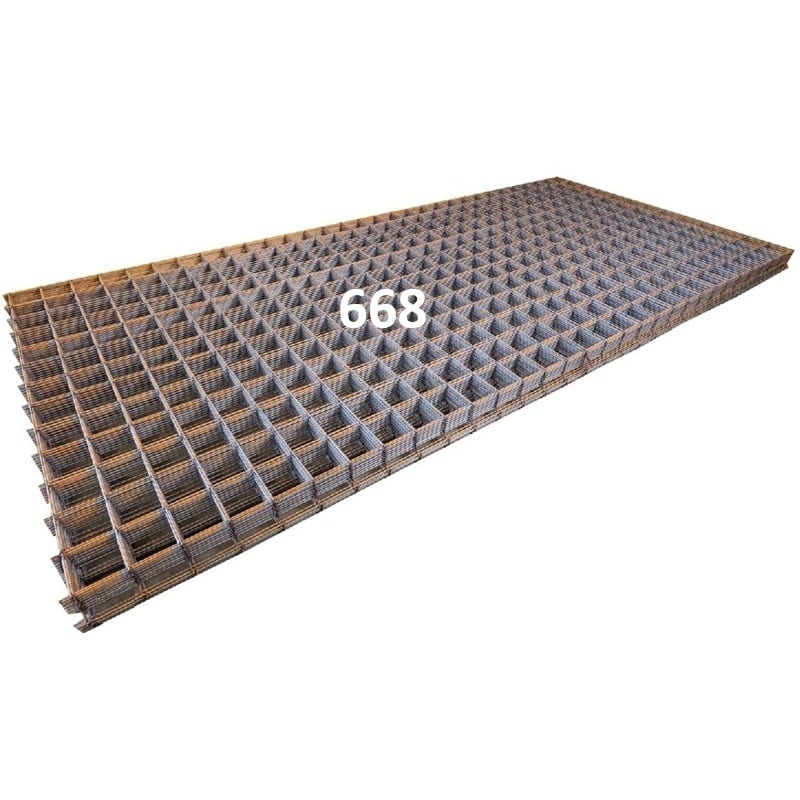

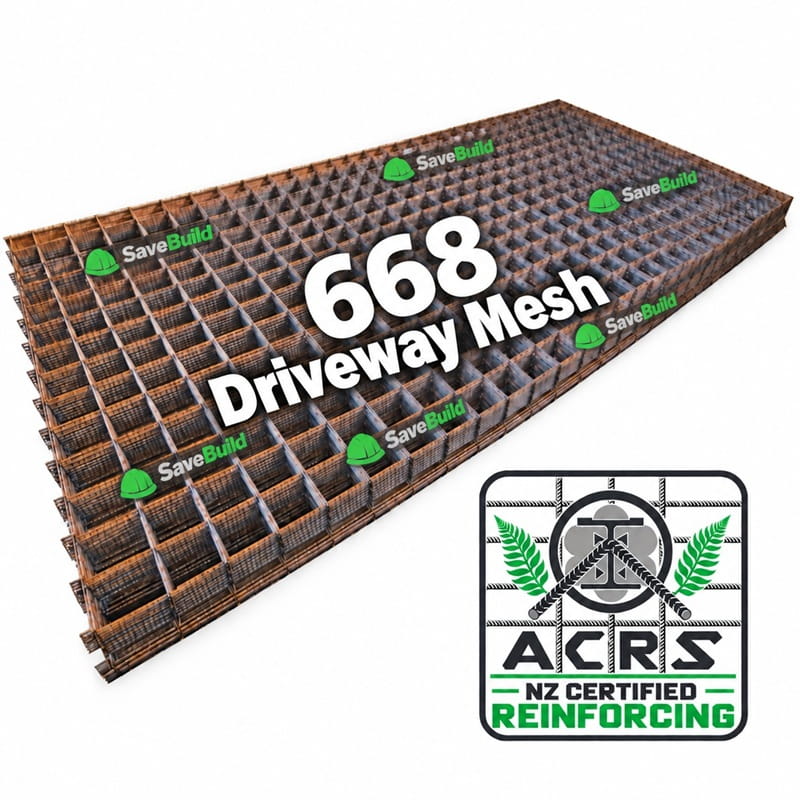

668 Concrete Driveway Mesh - New Zealand's Most Economical Option for Concrete Slabs
Across New Zealand, 668 reinforcing mesh is the most popular and cost-effective (cheapest) choice for driveways and light residential concrete slabs that require steel reinforcement.
Our 668 concrete driveway mesh provides added strength to residential driveways, footpaths, patios and light-use yard slabs and it offers sufficient strength for everyday use where an engineer's approval isn't required.
Unsure of which type of reinforcing steel mesh to buy? Read our guide about the Different Types of Reinforcing Steel Mesh in New Zealand (article will open in a new window).

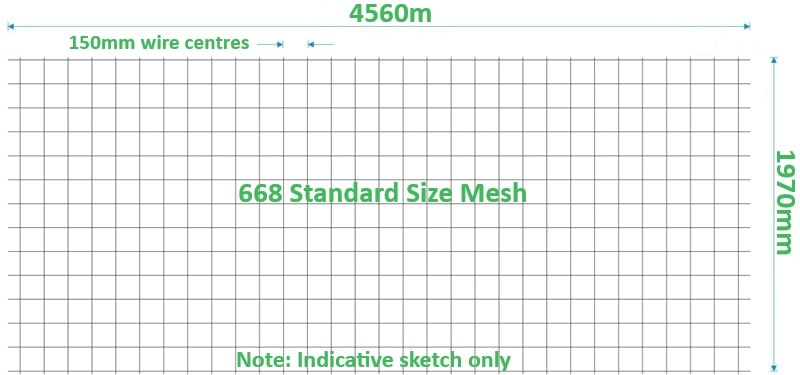

Technical Specifications of 668 Reinforcing Mesh:
- Dimensions: 4.56m x 1.97m
- Gross sheet area: 8.98 m2
-
Net cover (with 200mm* lapping): Approx. 7.52 m2
- Wire centres: 150mm
- Wire: 4.0mm dia
- Mass per sheet: Approx. 12.4kg
- Yield strength: >= 500MPa
- Please consult your engineer if a specific overlap splice is required
668 Reinforcing mesh is manufactured from high-quality hard-drawn steel in accordance with NZS4671:2019 and provides excellent tensile strength, helping ensure your concrete remains strong and resistant to cracking for years to come.
Easy Installation of 668 Concrete Reinforcing Mesh
Installation is straightforward.
You will need to position your mesh to cover the area of your concrete slab by placing the sheets next to each other with an overlap of approx. 200mm, which will result in a "Nett Cover" of around 7.52m2 per sheet after overlapping. This is also the formula you can use to calculate how many sheets you will need for your project:
The concrete reinforcing mesh is supported on small plastic bar chairs / concrete spacers (ensuring it sits at the correct depth within the slab) and held together with tie wire. You can purchase these products from our Reinforcing Accessories page.
Ideally the mesh height should be the middle of the concrete slab after it's been poured, so select the correct height of bar chairs to suit your concrete slab thickness (e.g. if your slab is 100mm thick, choose 50/65 bar chairs, which will allow you to lift the mesh 50mm or 65mm off the ground).
Once concrete is poured, it fully surrounds and locks the driveway mesh in place, providing optimal structural support.
Applications of 668 Concrete Reinforcing Mesh:
Reinforcing mesh for concrete driveways and yard slabs provides extra strength, reducing cracking from soil movement, temperature changes, and vehicle loads. Using 668 reinforcing mesh for driveways distributes loads evenly across the slab, minimising the risk of damage from soil movement, temperature fluctuations, and regular vehicle traffic. While it is often not mandated by engineering approvals, installing concrete mesh is an affordable way to significantly extend the durability and reliability of your concrete work.
Key Features & Benefits of 668 Mesh:
- Crack reduction: Helps prevent cracking caused by soil movement, temperature shifts, and vehicle loads.
- Optimised slab support: Distributes loads evenly throughout the concrete to improve structural integrity and increase service life.
- Cost-effective upgrade: Affordable way to enhance durability without full engineering approval.
- Full encapsulation: Concrete surrounds the mesh during pouring, locking it securely in place.
- Complies with NZ standards: Designed to meet common residential reinforcement requirements.
- Trusted choice for builders: Preferred by contractors for everyday non-structural concrete projects.
Projects & Tenders
If your enquiry relates to a project and you'd like us to quote on cut & bent reinforcing or a combination of bar, mesh and / or other products, please head over to our Projects & Tenders page.
